LeMotech ABS Plastic Dustproof Waterproof IP65 Junction Box Universal Electrical Project Enclosure White 3.9 x 3.9 x 2.8 inch (100 x 100 x 70 mm)
7 sold in last 24 hours
- Product Name: Junction Box; Waterproof Rating: IP65; Qualification:CE、ROHS
- Cable Entries Number: 5; Mounted Type: Surface Mount
- Electric Enclosure Material: ABS, Rubber; Net Weight: 160g; Main Color: White
- Outer Size: 3.9" x 3.9" x 2.8"/100 x 100 x 70mm(L*W*H); Inner Size: 3.9" x 3.9" x 2.2"/ 99 x 99 x 56mm(L*W*H) - - (Allowable Error: ±2mm); Thickness : 0.1''/2.5mm; Screw Thread Dia.: 0.16"/4mm

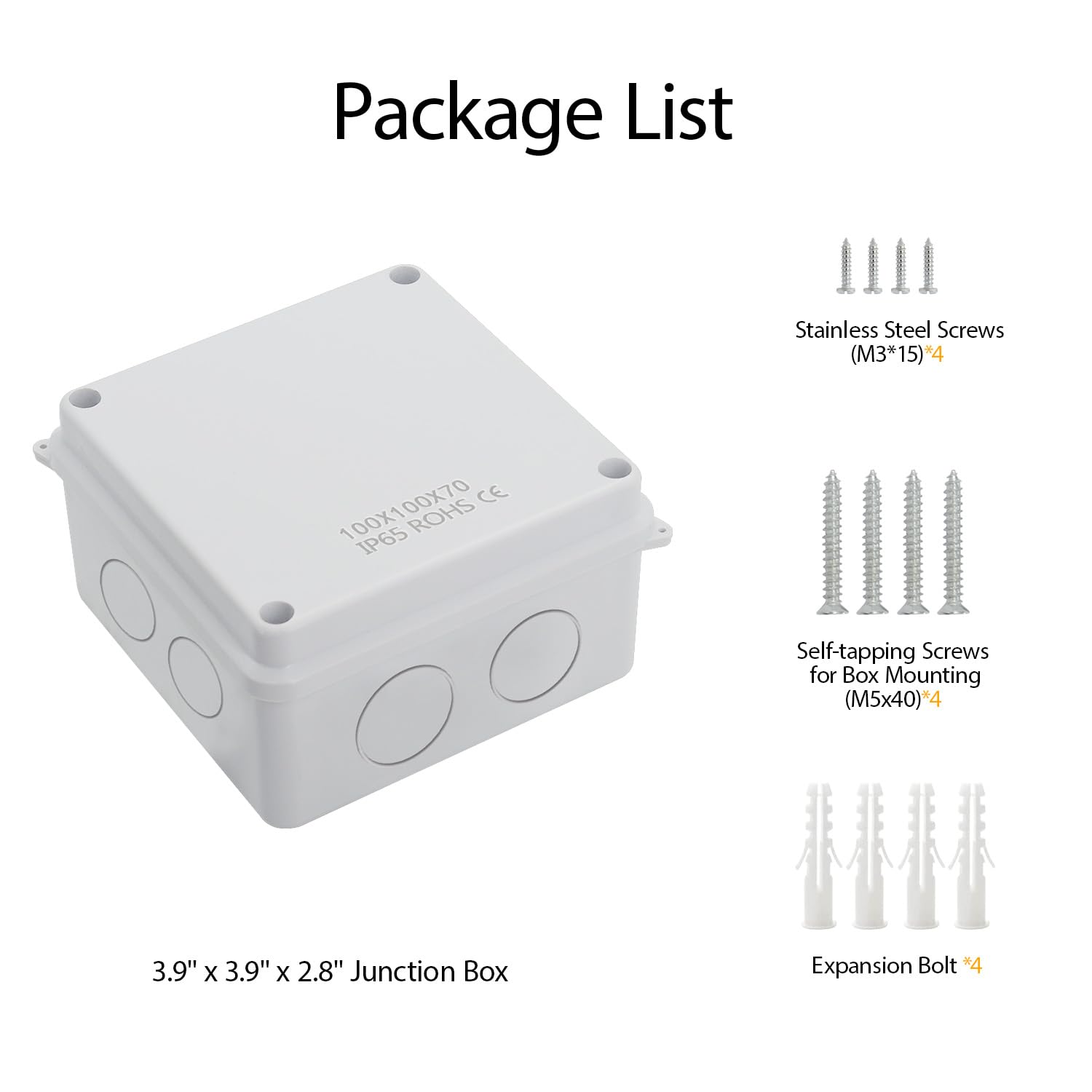

- Package Content: 1 x Junction Box, Some Metal Screws(Not Rustproof)
Tags |
Estimated shipping
Select a product to estimate shipping.Important information
CE、ROHS Qualified

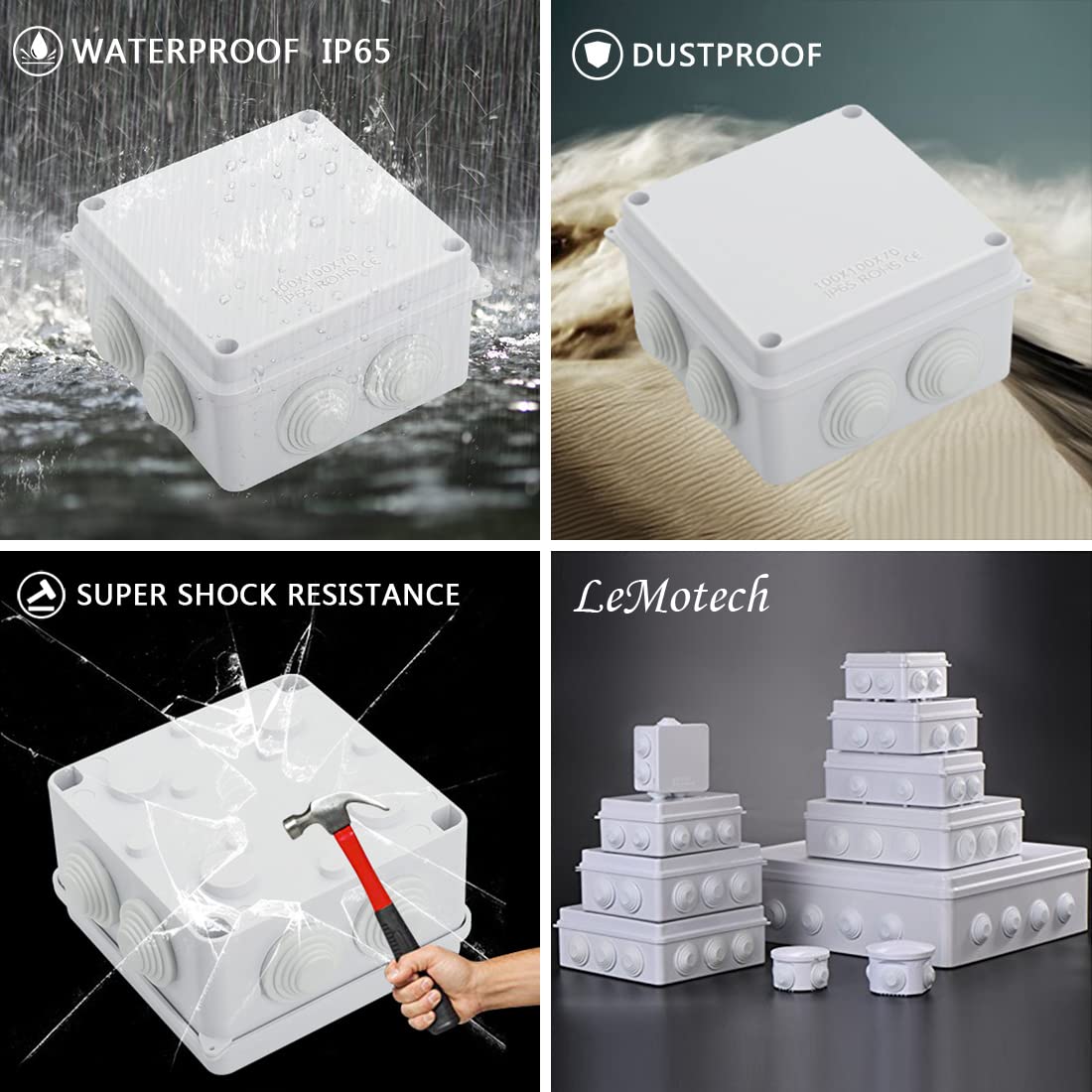

Features
IP65 Waterproof
Keep components inside dry and safe. Not afraid of housing the project outdoor.
Dustproof
With rubber gasket to seal the whole box. Prevent dust or any dirt from causing damage to internal facilities.(*D3.1"x H2",3.4"x3.4"x2"has no gasket)
Shock Resistance
Durable and Sturdy box is the base of everything. It is made of ABS plastic and has a better serve time.
Applications
Rubber gasket
Design for better waterproof performance.(*D3.1"x H2",3.4"x3.4"x2"has no gasket)
Rubber stopper
Convenient for cable entry.

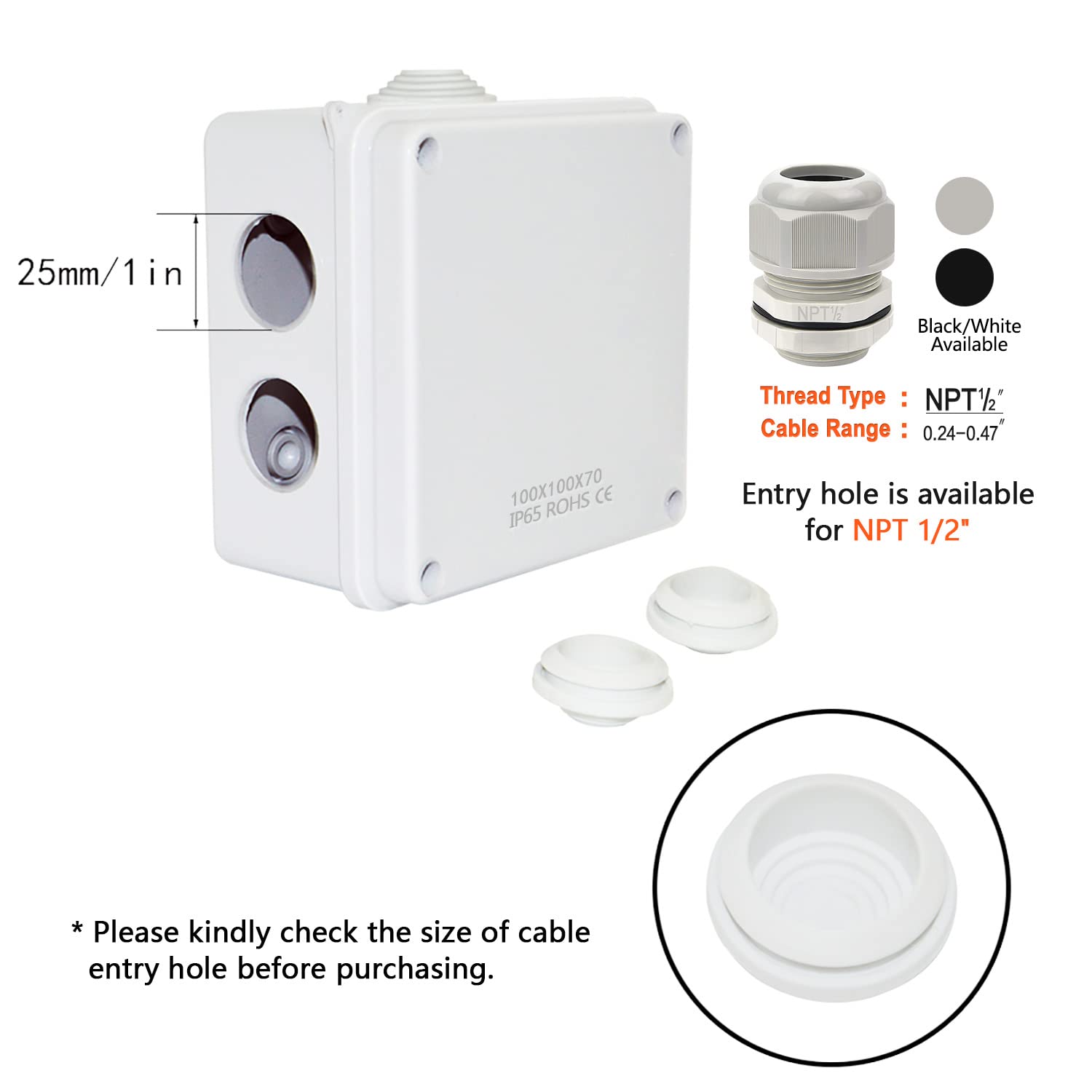

Cable entry hole
Works for cable gland and other DIY projects.
Wiring hole (internal view)
Convenient to install circuit board, DIN rail or panel. ( *Tip: In order to confirm the detailed installation dimensions, please refer to our detail image, which shows specific internal dimensions of the product.)
Product details
| Main Specification | |
|---|---|
| Fabrikant | LeMotech |
| Aantal eenheden | Aantal |
| Merk | Lemotech |
| Aantal items | 1 |
| Capaciteit | 27.37 cubic inches |
| Inbegrepen componenten | ELECTRICAL BOX |
| Afmetingen van het product | 2.8"D x 3.9"W x 3.9"H |
| Materiaal | Acrylonitril butadieenstyrene |
| Kleur | Witte |
| Type beëindigen | Oil |
| Installatietype | Schroef-in |
| Stijl | Outdoor Indoor |
| Itemgewicht | 153 g |
| Technical Details | |
| Deelnummer | lm201709071386 |
| Item details | |
| Modelnummer | lm201709071386 |
| Measurements | |
| Item Afmetingen D x B x H | 2.8"D x 3.9"W x 3.9"H |
| Others | |
| Productsoort | Electrical Boxes |
