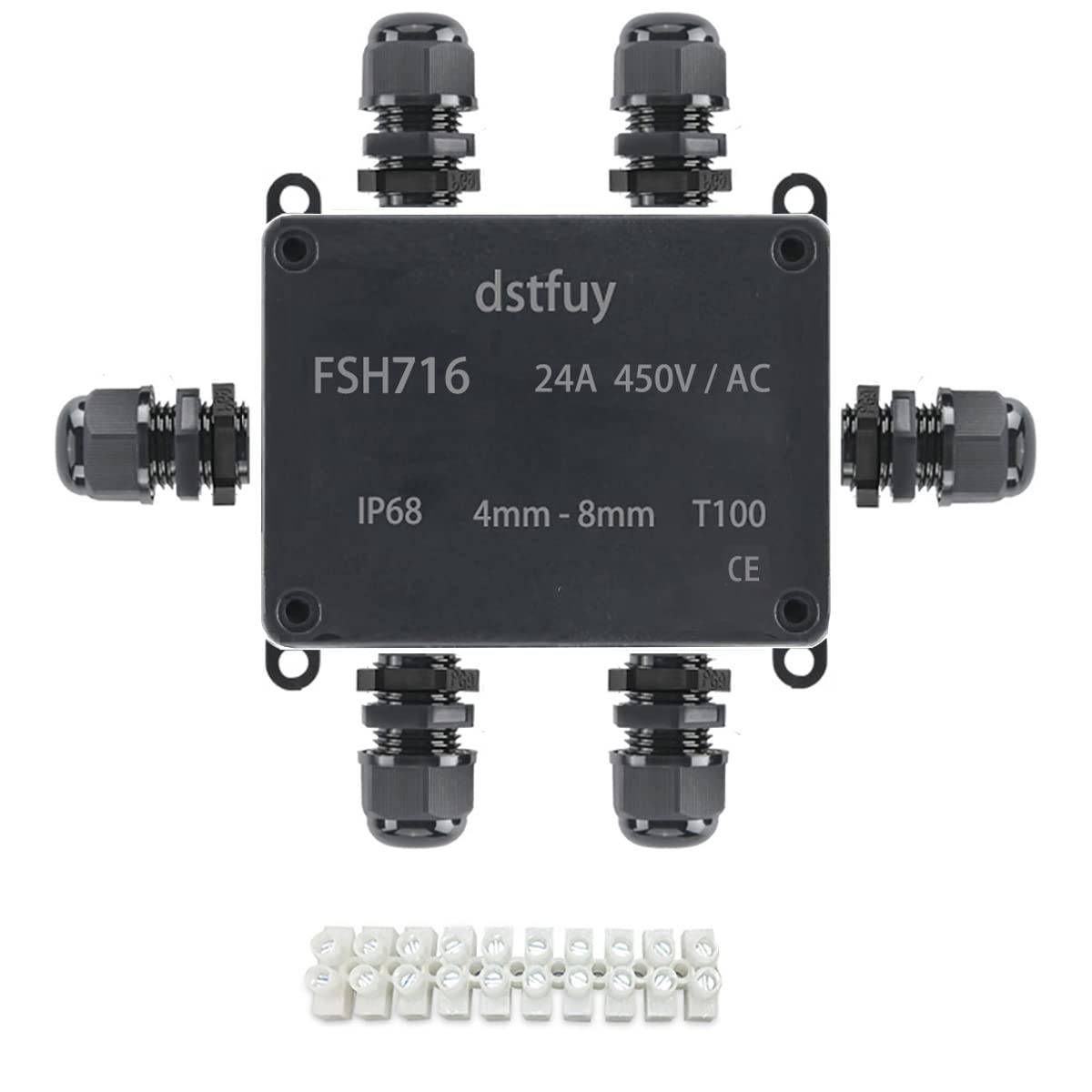

ABS Waterproof IP68 Electrical Boxes with 24A Barrier Terminals.
9 sold in last 24 hours
- Specification:Waterproof junction box with Cable glands model of PG9 and terminal block(10 Position) .Available wire diameter:4mm-8mm.(Note:Need to drill holes)
- Waterproof IP68 Electrical Box:IP68 high level waterproof class/Moisture-proof/Dust-proof.Provides long term protection for your indoor and outdoor applications.
- High Quality Materials:Made of high quality plastic PC housing,it will not crack or fade in Sunlight,corrosion resistant,sturdy and terrific for making those DIY projects.

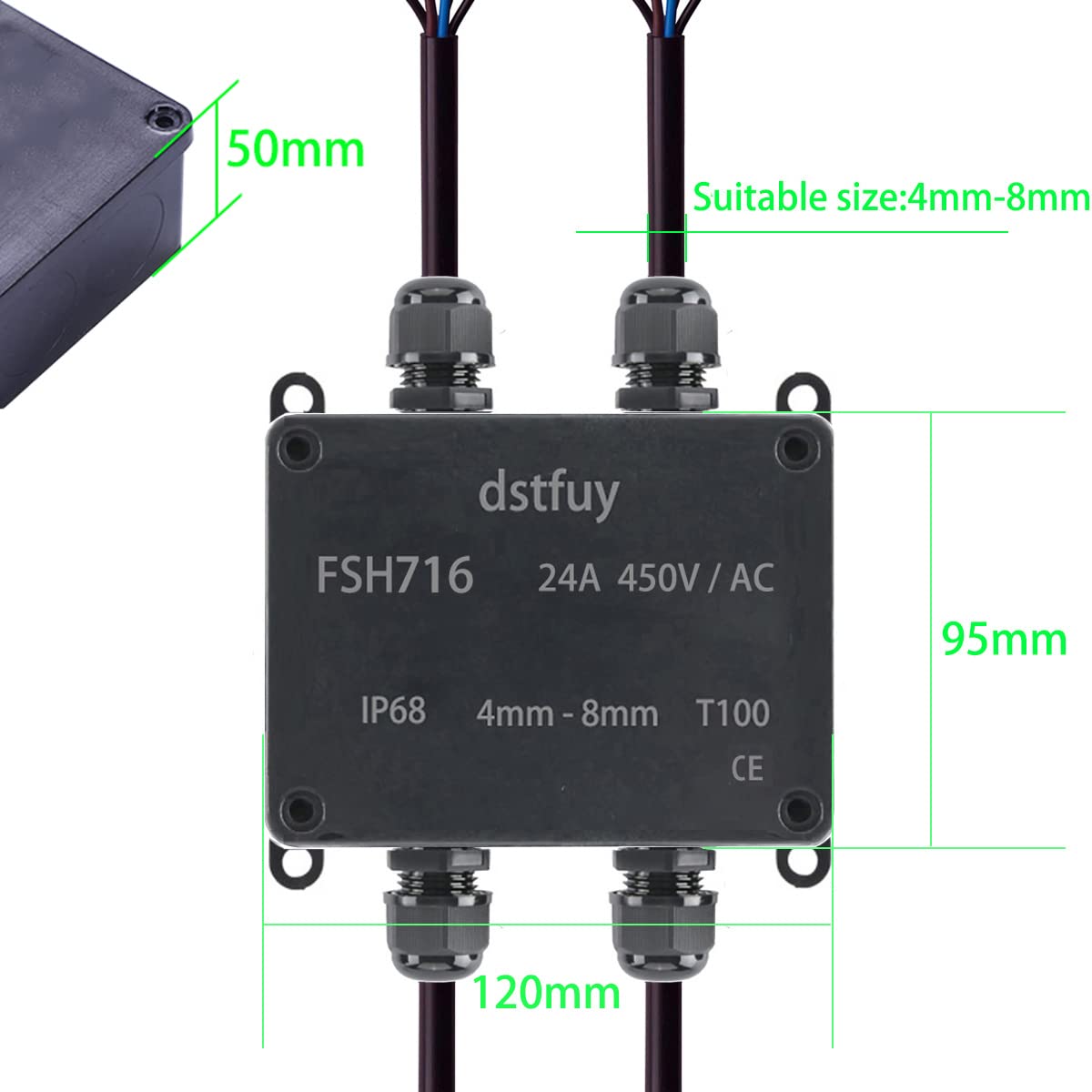

- Size:Outer Size of electrical enclosure: 4.72"x3.74" x 1.97"(120X95X50mm)(L*W*H); Inner Size of electrical enclosure: 4.33" x 3.35" x 1.63" (110x 85x 41.5mm)(L*W*H) - - (Allowable Error: ±2mm).
- Wide Usability Project Box:The outdoor junction box suitable for kinds of LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights.Underground engineering,solar-wind power,solar water heaters and so on.
- The DIY opening hole design greatly ensures the sealing of the waterproof project box. Up to 8 holes can be distributed of the waterproof box. You can make holes according to your needs.
Tags |
Estimated shipping
Select a product to estimate shipping.The IP68 waterproof electronic box,designed for indoor or outdoor.The cover interface of the waterproof box has a transparent sealing strip,which can make it a better sealing effect.It is good for protection against sun exposure,dust,corrosion,and splashing water.
This junction box can be installed horizontal and vertical as external junction box to hide electrical connections.Only need to connect the same type of wire, no cable cutting, more convenient and safer.
The DIY opening hole design greatly ensures the sealing of the waterproof project box. Up to 8 holes can be distributed of the waterproof box. You can make holes according to your needs.
Specifcations:
Products name:Waterproof junction box
Material:Plastic
Color:Black
Rated voltage:AC 450V
Rated current:24A
Waterproof level:IP68
Cable gland type:PG9
Available Wire Diameter:4mm-8mm
Outer Box Size:(120x95x50mm)
Inner Box Size(Approx):(110x85x41.5mm)
Package included:
1x Junction Box
1 x Rubber Grommet
4 x Screws
6x PG9 Cable Gland
1 x terminal block(10 Position)
| Main Specification | |
|---|---|
| Materiaal | Kunststof or Acrylonitril butadieenstyrene |
| Fabrikant | dstfuy |
| Aantal eenheden | Aantal |
| Specificatie Met | Ip68 |
| Merk | dstfuy |
| Aantal items | 1 |
| Inbegrepen componenten | 3 |
| Afmetingen van het product | 1.97"D x 4.72"W x 3.74"H |
| Kleur | Zwart |
| Type beëindigen | Corrosion Resistant |
| Installatietype | Schroef-in |
| Stijl | Compact |
| Itemgewicht | 0,29 kg |
| Technical Details | |
| Deelnummer | bt-4 |
| Item details | |
| Modelnummer | bt-4 |
| Measurements | |
| Item Afmetingen D x B x H | 1.97"D x 4.72"W x 3.74"H |
| Others | |
| Productsoort | Electrical Boxes |
| Item markeren | Electric Junction Project Box for 4-8mm Dia Wire.Outdoor External Electric Power Cord Boxes. |
