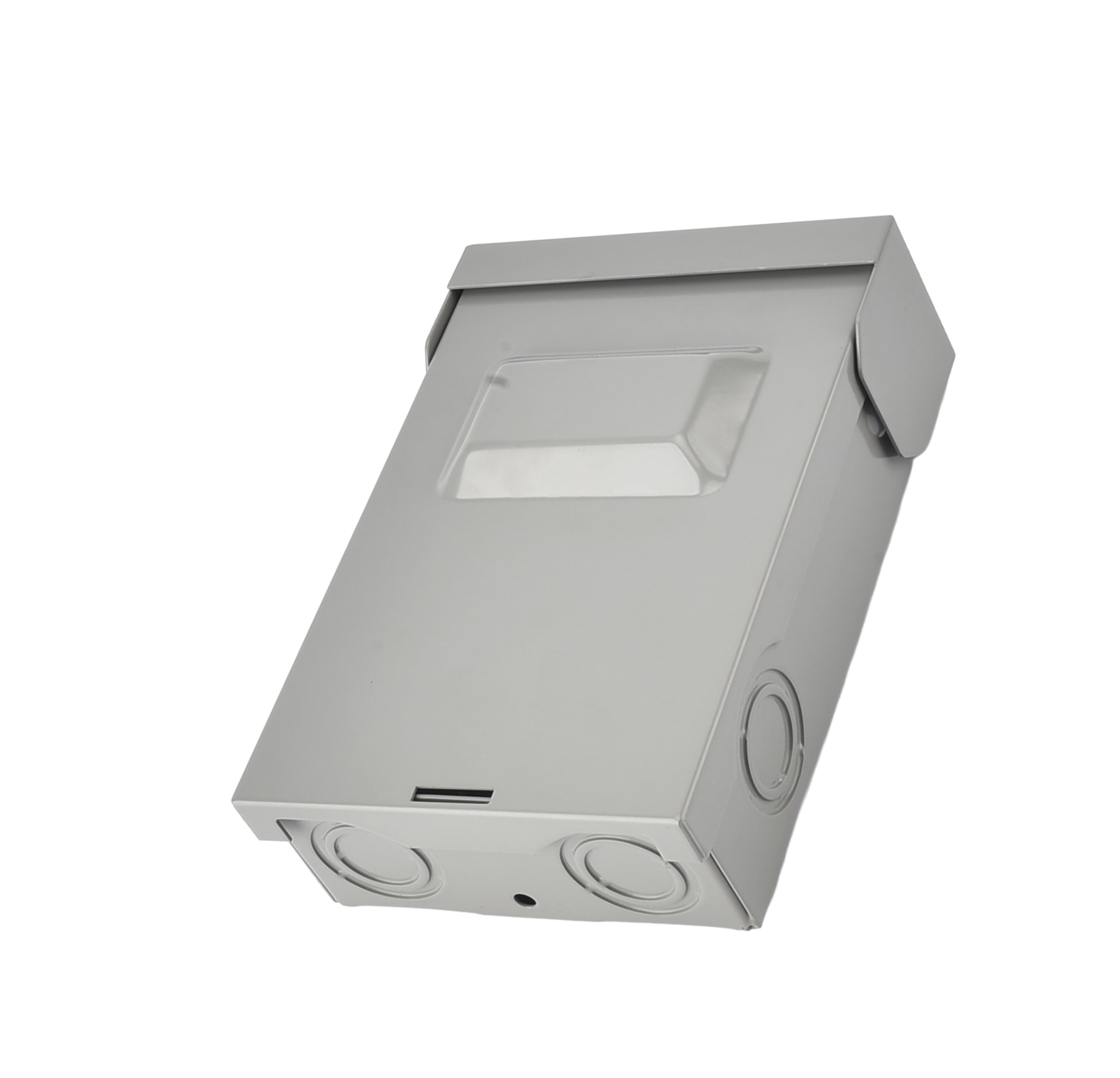

60A Non-Fusible Disconnect Switch 1Pack
10 sold in last 24 hours

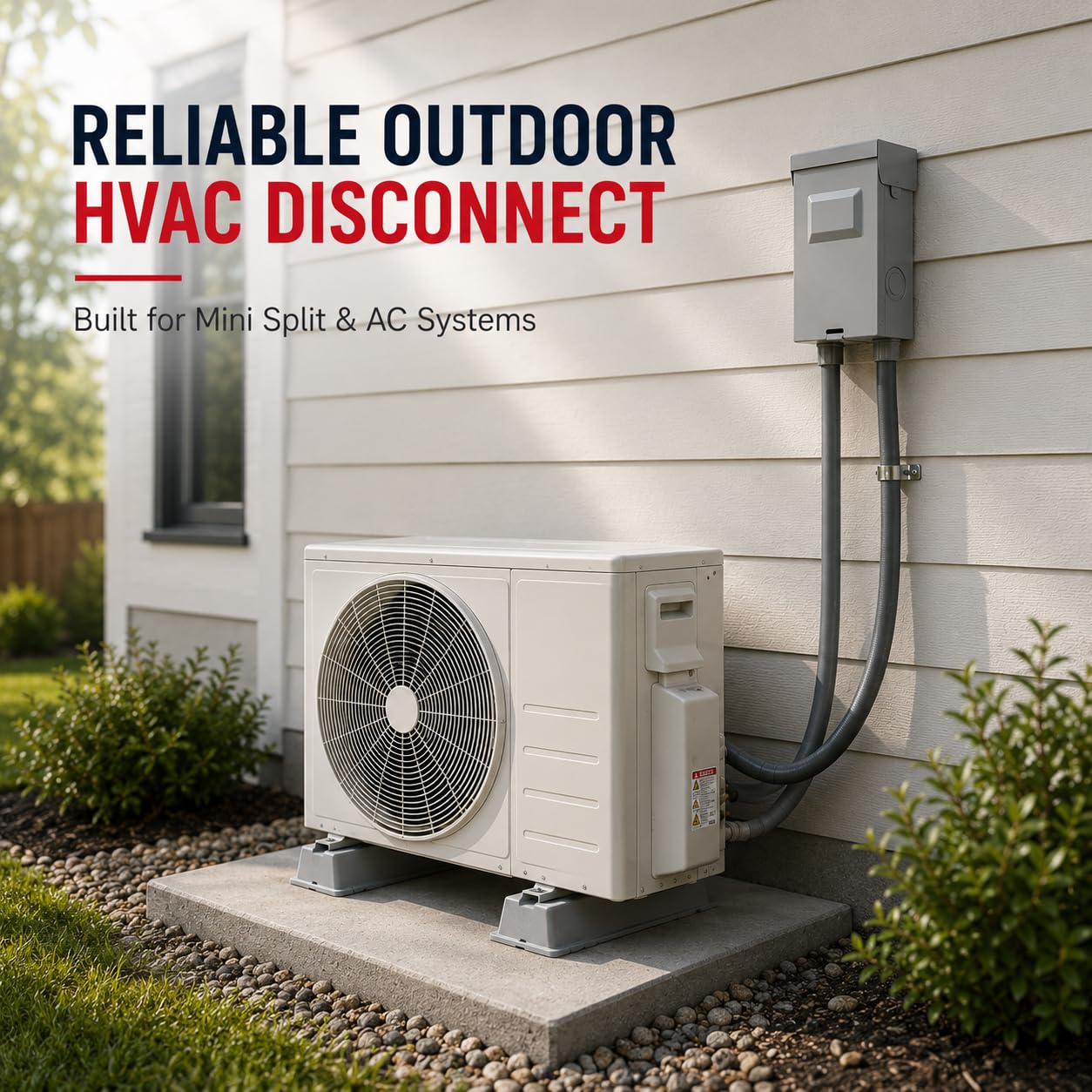

- UL LISTED & NON-FUSIBLE DESIGN: This 60-amp non-fusible disconnect switch meets UL safety standards, ensuring reliable and code-compliant electrical disconnection for air conditioning units

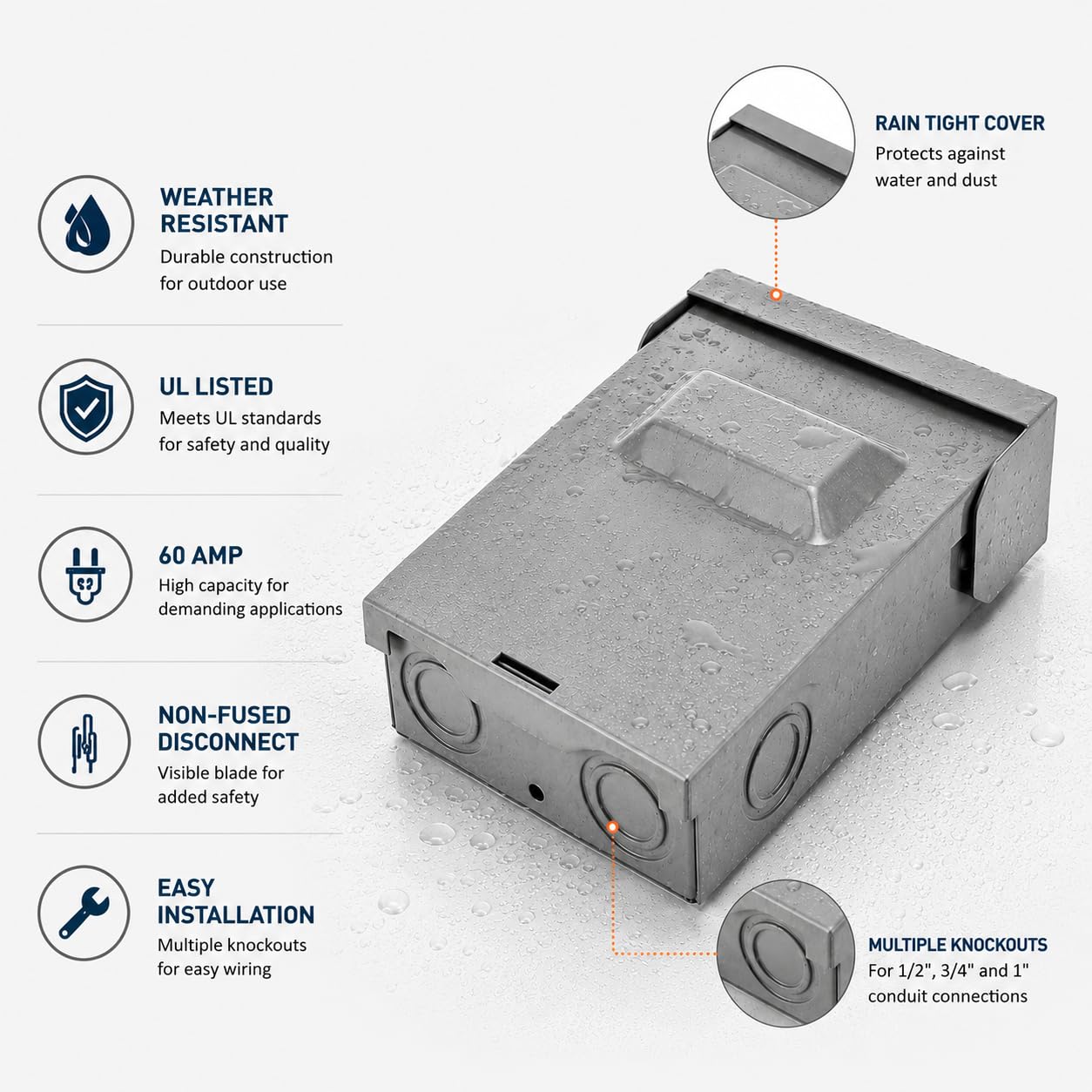

- NEMA 3R WEATHERPROOF ENCLOSURE: The metallic Type 3R enclosure is designed to protect against rain, sleet, and external ice formation, suitable for outdoor installations
- PULL-OUT SWITCH MECHANISM: Features a convenient pull-out switch mechanism that allows for quick and easy disconnection of power to your AC unit for maintenance or emergencies
- DURABLE METALLIC CONSTRUCTION: Built with a sturdy steel enclosure finished in a corrosion-resistant gray coating, providing long-lasting durability in various weather conditions
- MULTIPLE CONDUIT KNOCKOUTS: Equipped with multiple pre-punched conduit entry knockouts on the enclosure for flexible wiring configurations and straightforward installation
Tags |
Estimated shipping
Select a product to estimate shipping.Universal Fit / Easy Install / UL Recognized
This Pull-out disconnect is wall mount type, in most cases, could fit all difference brand A/C unit.
Tools required: drill tools and flat head screwdriver.
UL compliant File No: UL1429. E535437.
Technical Specifications
Why choose us
Long Lasting for Coastal Outdoor Use
Electrophoresis seals all rust-prone crevices of the box; extra powder coating cuts coastal rust risks greatly.
Extended service life for coastal outdoor applications.
Larger Elbow Room
Flip-top opening angle could be 105°, provide better vision and elbow room for operations.

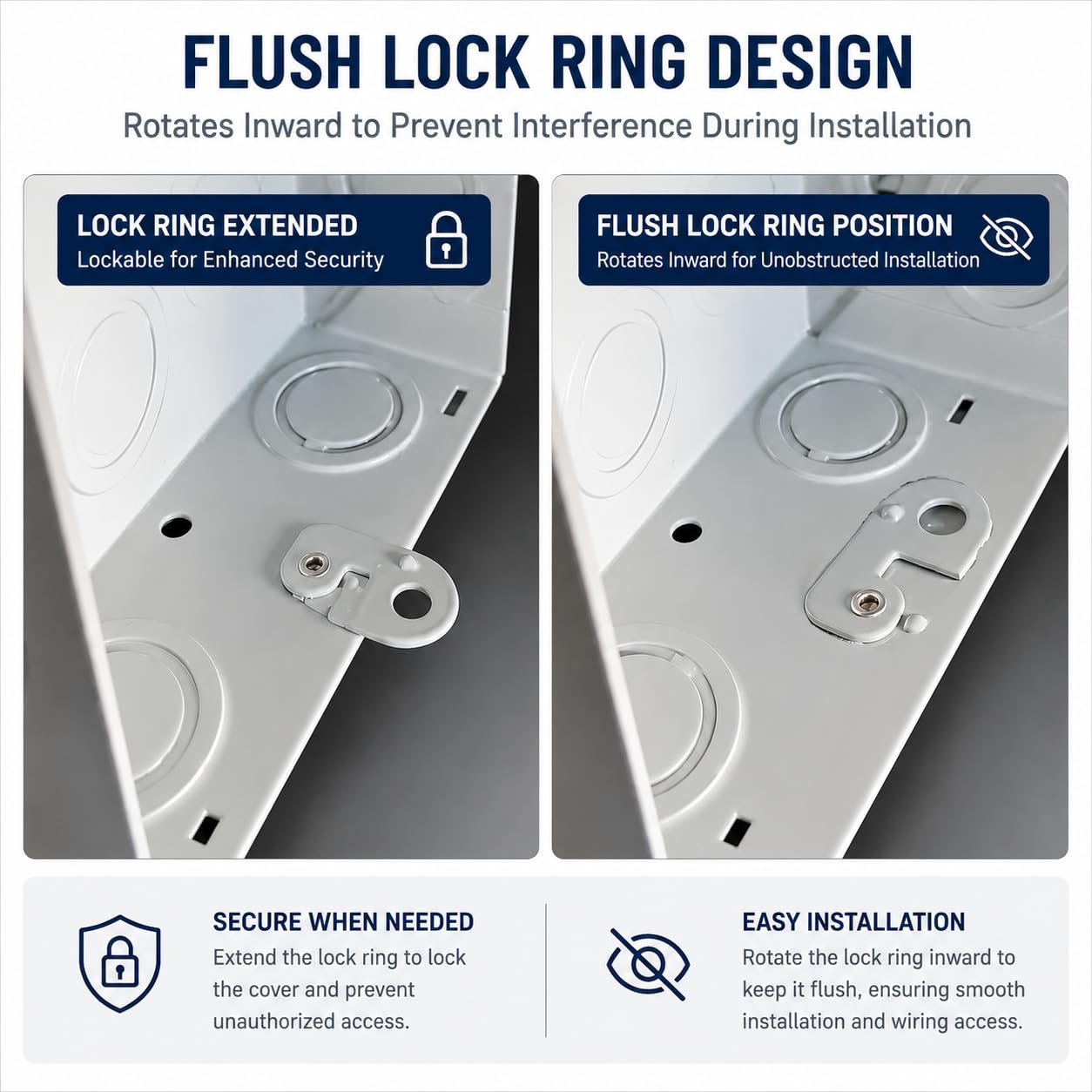

Rotary Lock Pad Design
As our experience, the fixed lock pad often easily scratches the engineer's arm during operating, we improved it to be rotatable.
Rotary lock pad design could provide better experience during operations.
Installation Guide
Open the cover and slide it to lock in position

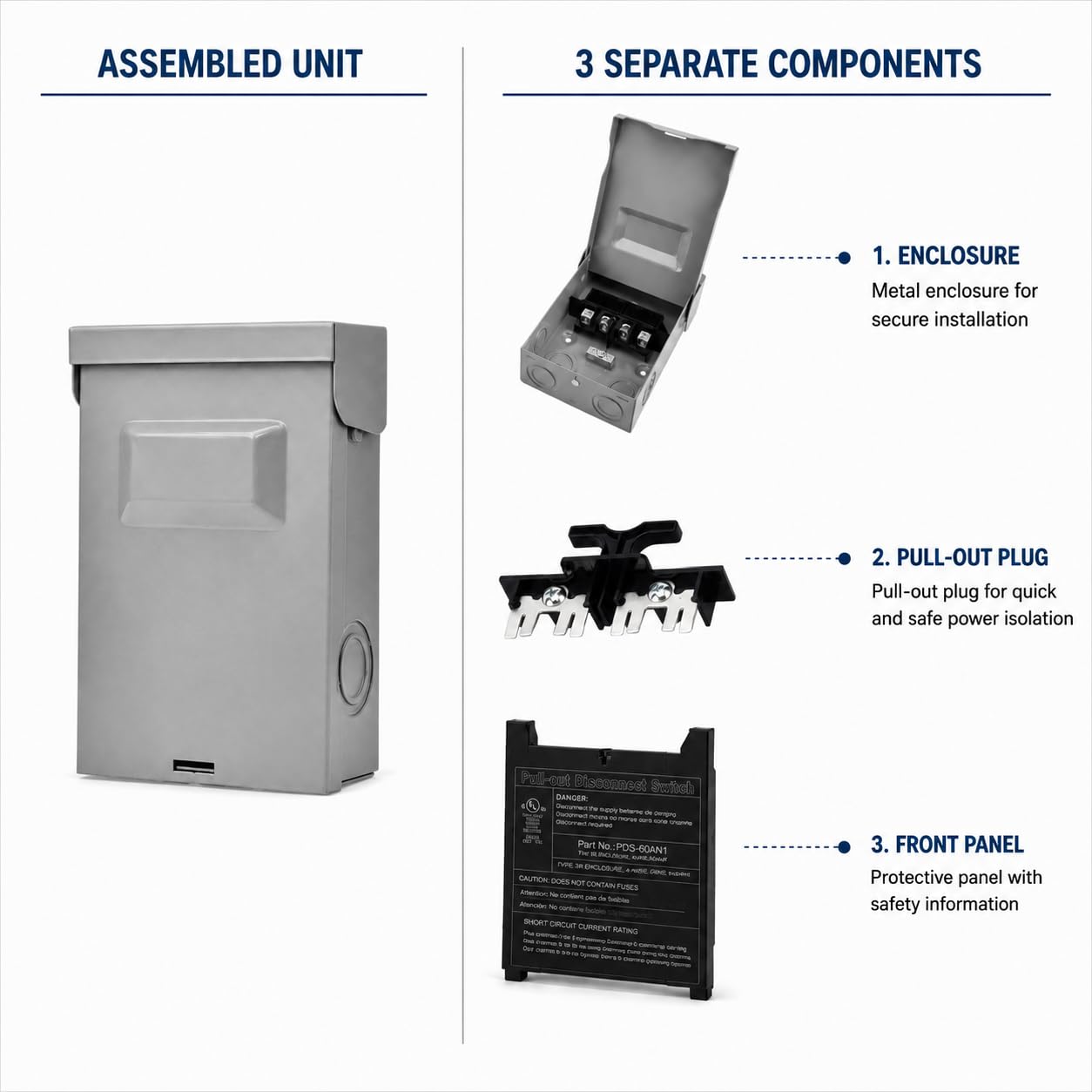

Remove the front panel and pull-out plug
Knock out the needed conduit entries in the desired size
Drill a mounting screw into the wall to hang the box
secure the box with 1 to 3 additional screws
Please use the wiring diagram and information on the back of the front panel
Install the front panel and then the pull-out plug in the ON position
Product details
| Main Specification | |
|---|---|
| Materiaal | Metaal or Koper |
| Fabrikant | DAHENG |
| Aantal eenheden | Aantal |

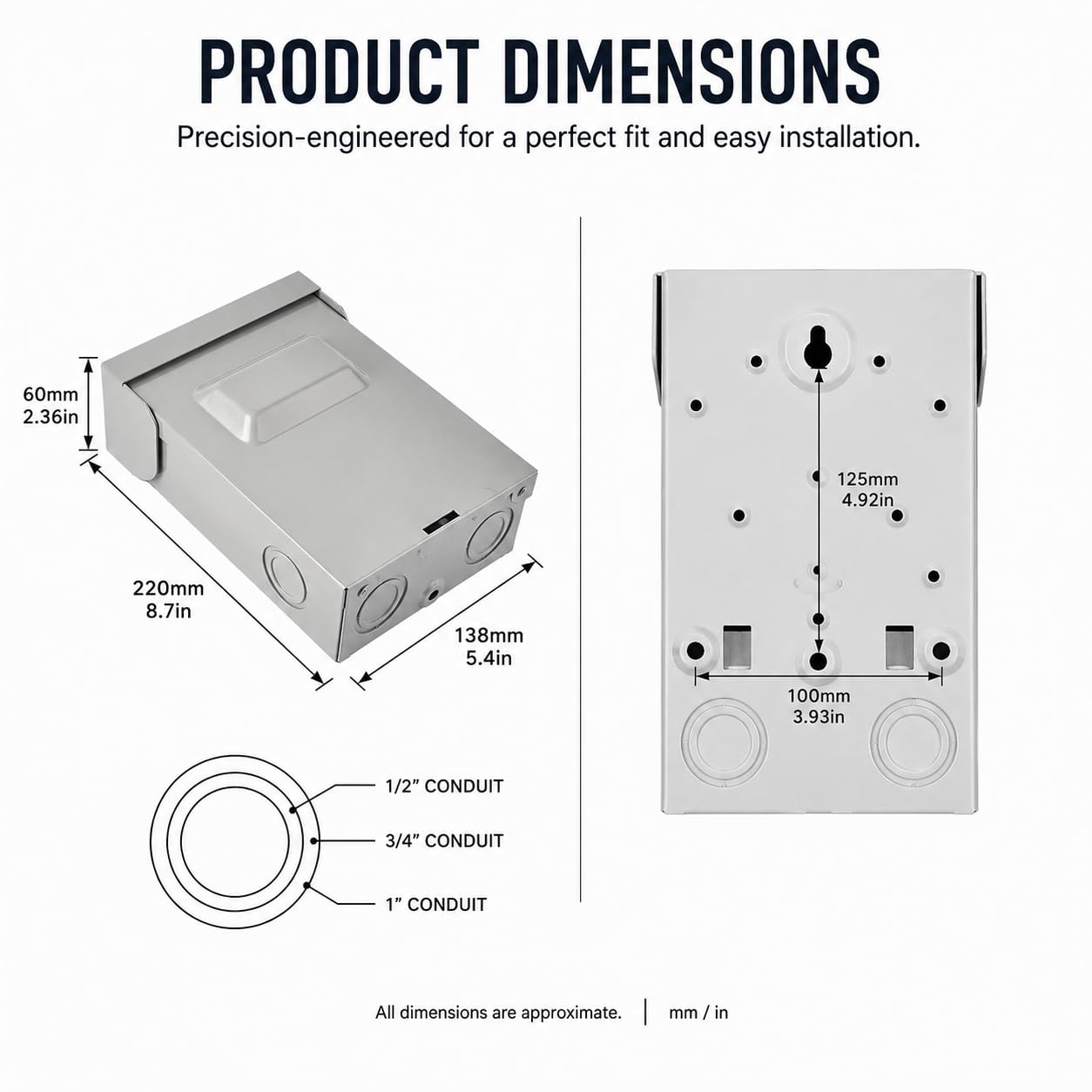

| Itemafmetingen L x B x H | 8.7 x 5.5 x 2.75 inches |
| Specificatie Met | UL |
| Contactmateriaal | Koper |
| Contacttype | Normaal gesproken openen |
| Huidige rating | 60 A |
| Bedrijfsspanning | 240 Volt |
| Merk | CNDAHENG |
| Aantal items | 1 |
| Werkwijze | ON-ON-OFF |
| Kleur | Grijs |
| Type connector | Pull-out |
| Technical Details | |
| Materiaaltype | Koper or Metaal |
| Deelnummer | PDS |
| Model | PDS-60AN |
| Measurements | |
| Item Afmetingen | 8.7 x 5.5 x 2.75 inches |
| Others | |
| Productsoort | Electrical Boxes |
